Used 1999 TRUMPF TRUMABEND V130 | Press Brakes

Description

TRUMPF TRUMABEND V130 | S/N: 885425 | Used

DESCRIPTION:

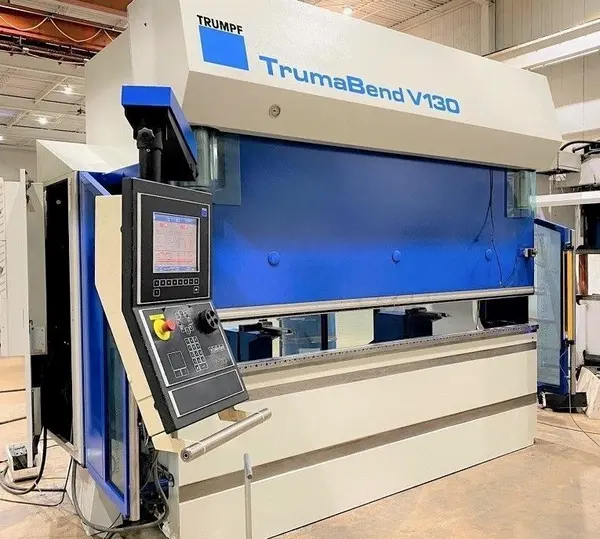

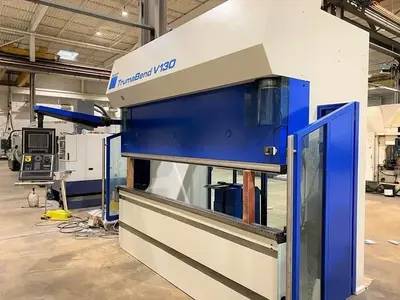

Trumpf Trumabend V130 CNC Hydraulic Press Brake , 144 Ton x 10'

SPECIFICATIONS:

SIZE 144 Ton
TONNAGE 144 T
TYPE HYD
OVERALL LENGTH 10'
BETWEEN HOUSINGS 8.83'
STROKE 8.5"
DIMENSIONS 144" x 87" x 94"
WEIGHT 11250
Trumpf Trumabend V130 CNC Hydraulic Press BrakeCapacity

Tonnage Capacity: 144 Tons
Maximum Bending Length: 120.4″
Distance Between Housings: 106″
Stroke Length: 8.46″
Die Space: 15.2″
Throat Depth: 16.1″
Travel In X-Axis: 24″
Travel In R-Axis: 9.8″
Operating Speed In Y-Axis: 2-26 IPM
Drive Motor: 20 H.P.
Approximate Machine Weight: 11,250
Machine Dimensions
144" x 87" x 94"
