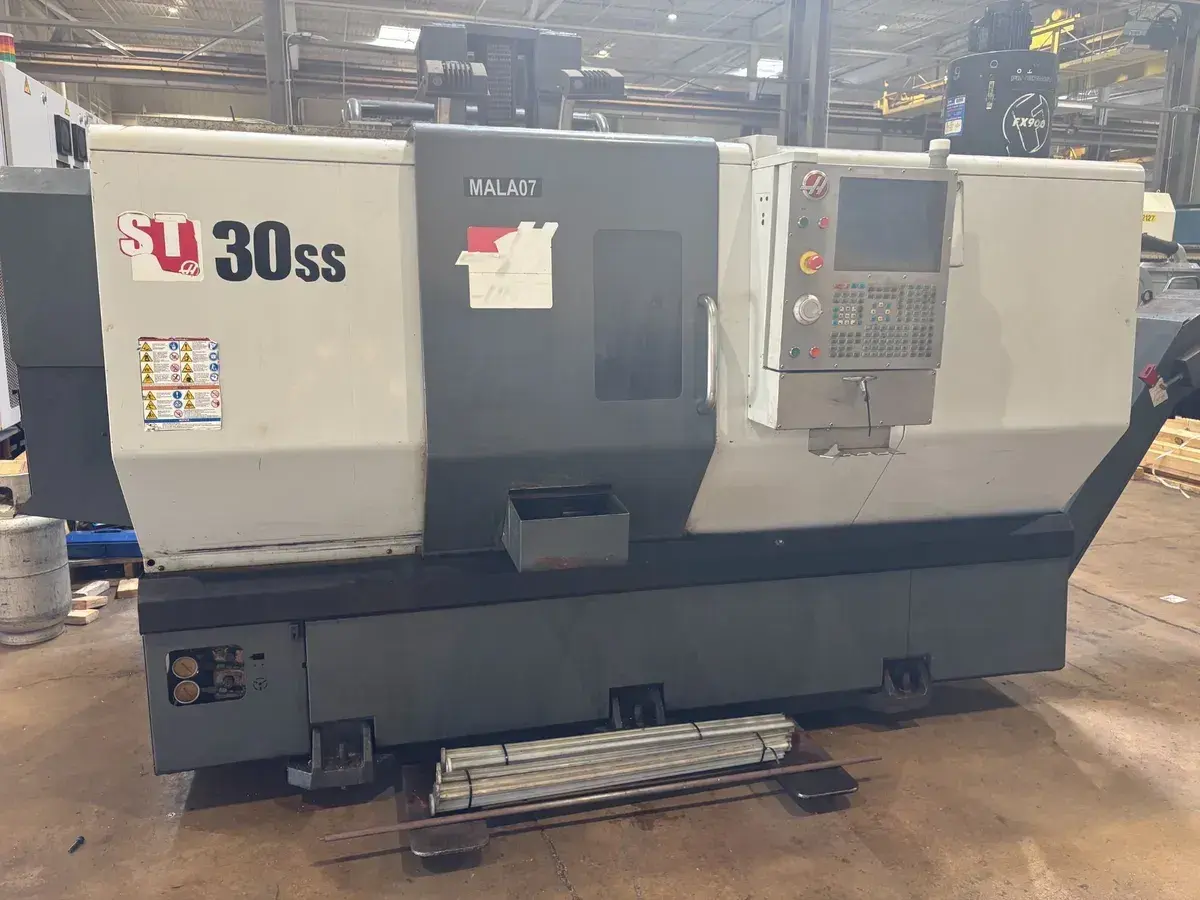

Haas St-30SS Cnc Lathe

Description

HAAS ST-30SS

DESCRIPTION:
Haas ST30SS Live Tool CNC Lathe

SPECIFICATIONS:

SWING 31.75"
MACHINING LENGTH 26"
CHUCK SIZE 10"
BAR CAPACITY 3"
POWER 30 hp
MAX RPM 4,500 RPM
TURNING DIA 16"
LIVE TOOLING Yes
Haas ST30SS Live Tool CNC Lathe

Maximum Part Swing: 31.75" (806 mm)
Maximum Cutting Diameter: 16.0" (406 mm)
Maximum Cutting Length: 26.0" (660 mm)
Chuck Size: 10" (254 mm) hydraulic chuck
Bar Capacity: 3.0" (76 mm)Spindle Specifications
Spindle Speed: 4,500 RPM
Spindle Motor: 30 hp (22.4 kW) vector drive
Spindle Nose: A2-6Drive System: Belt drive

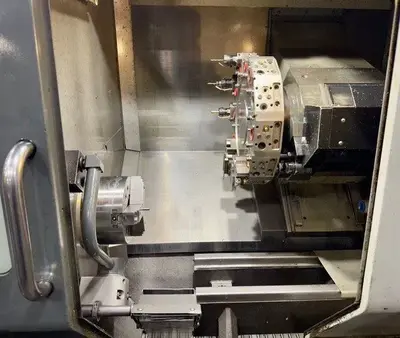

Turret & Live Tooling

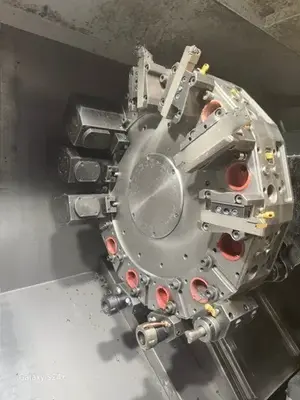

Turret Capacity: 24-station hybrid turret (12 VDI / 12 BOT)
Live Milling: Supported (3-axis capabilities with C-axis spindle orientation)
Tapping: Rigid tapping
Travel & Feedrates
X-Axis Travel: 12.5" (318 mm)
Z-Axis Travel: 26.0" (660 mm)Rapid Traverse (X/Z): 945 ipm (24.0 m/min)
Utilities & Electricals
Coolant Tank Capacity: 55 Gallon (208 Liter) with 3/4 hp pump
Electrical Requirement: 220 VAC @ 70 Amps (3-Phase, Low) or 440 VAC @ 35 Amps (3-Phase, High)

EQUIPPED WITH:

Live Tool
3 Jaw Chuck
Tool Presetter
