2006 Leadwell T7 Cnc Lathe
Have one to sell?
ConditionUsed
1 available

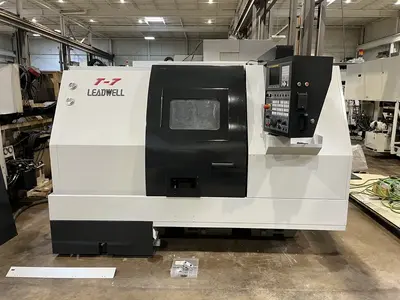

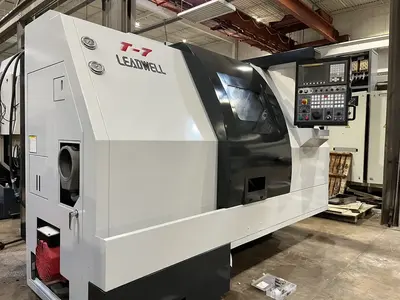

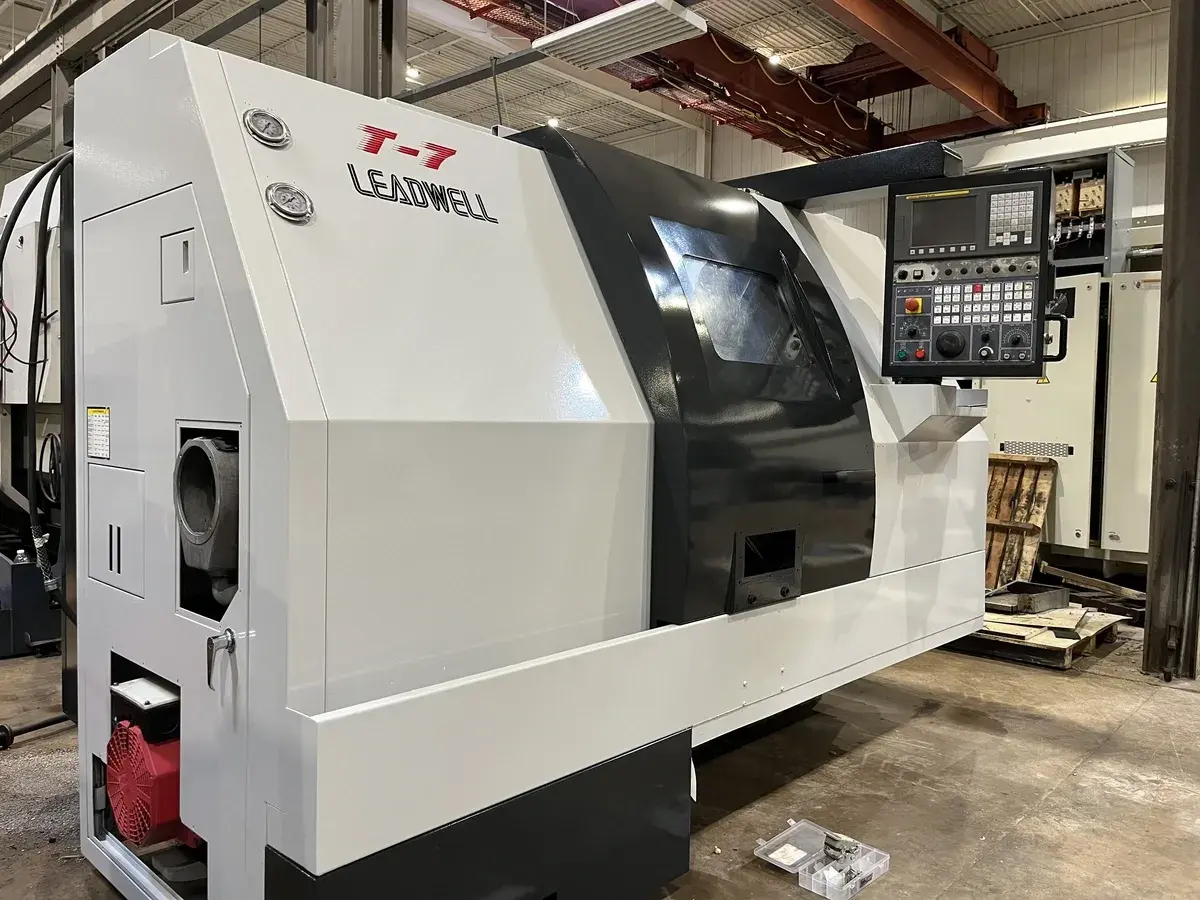

Leadwell Model T-7 2-Axis Slant Bed CNC Lathe
Max swing: 20.4"
Max turning diameter: 13.8
Max Turning Length: 21.7
X Axis Travel: 7.9"
Z Axis Travel" 32.6"
Bar capacity: 2.0"
Chuck size: 8"
Max spindle speed: 4500 rpm
Spindle nose: A2-6
Number of tool positions: 12
X rapid traverse: 780 IPM
Z rapid traverse: 936 IPM
Spindle Motor: 20 hp
Machine weight: 10,000 pounds
Fanuc 0iTC CNC Control
8" Chuck
Tool Presetter
Tailstock
Parts Catcher
Chip conveyor
MTA International Super 80 Barfeeder
Leadwell Model T-7 2-Axis Slant Bed CNC Lathe
Max swing: 20.4"
Max turning diameter: 13.8
Max Turning Length: 21.7
X Axis Travel: 7.9"
Z Axis Travel" 32.6"
Bar capacity: 2.0"
Chuck size: 8"
Max spindle speed: 4500 rpm
Spindle nose: A2-6
Number of tool positions: 12
X rapid traverse: 780 IPM
Z rapid traverse: 936 IPM
Spindle Motor: 20 hp
Machine weight: 10,000 pounds
Fanuc 0iTC CNC Control
8" Chuck
Tool Presetter
Tailstock
Parts Catcher
Chip conveyor
MTA International Super 80 Barfeeder
Imperial
| Swing | 20.4" |
| Machining Length | 23.5" |
| Chuck Size | 7.8" |
| Bar Capacity | 2" |
| Max RPM | 4,500 RPM |
| Turning Dia | 13.8" |
