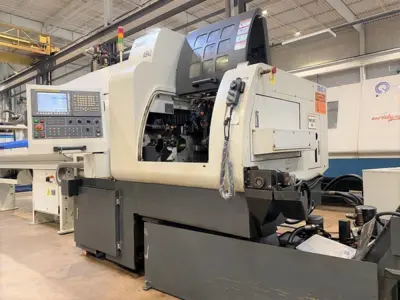

2011 Swistek AB42

Description

| Year: 2011 | SWISTEK AB42 HYBRID CNC SWISS | S/N: S/N 0283 | Used

DESCRIPTION:
42MM, Iemca Boss 551-E Automatic Bar Loader, 4-p

SPECIFICATIONS:

SPINDLE HOLE DIA 1.6535"
POWER 10 hp
RPM 6,000 RPM
# AXIS 7
SIZE 1.65"
CONTROL CNC (Fanuc 32i)
DIMENSIONS 115 x 55x 88"
WEIGHT 9000 LBS

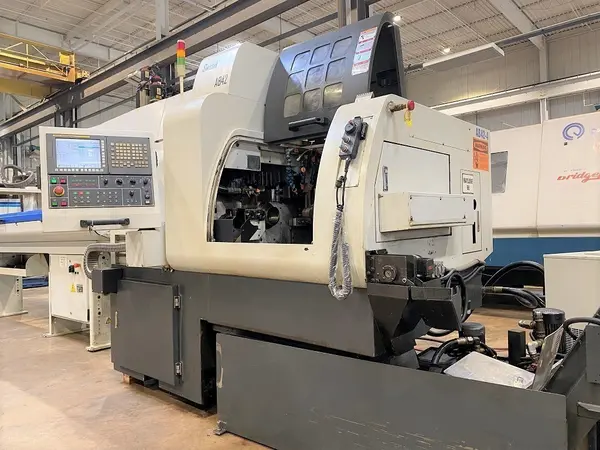

Swistek Model AB42 Hybrid 7 Axis CNC Swiss Type Lathe

Capacity with Rotary Guide Bushing 38mm (NOT INCLUDED)
Capacity without Guide Bushing 42mm with Chucker Option
No. of Simultaneous Controllable Axis: 7
Independent Subspindle
Rapid Traverse Rate 1,260ipm
Simultaneous 7-Axis
Turning Tools 6
Live Tools Up to 14
Total number of tools Up to 30
Full C-Axis Main and Subspindle
Integrated Main/Sub Spindle Motors 10hp
Fanuc 32i Control
Iemca Boss 551/E Bar Feed
4-Port High Pressure Coolant Systems
Rotating Part Conveyor
Chip Conveyor
Temperature Controlled Spindle
All Available Tooling And Manuals
To Include Fire Suppressors
Foot Print:
Machine without Chip 9' long
Machine with chip 12' 2"
Machine with chip and barfeed 27' 9"
Barfeed: 15' 7"
Overall width of machine 5'5"
Chiller is 1' 5" x 1' 5"
Total floor print with all accessories: 27' 9" x 7' wide
