2007 Johnford Sv-40P VMc

Description

Year: 2007 | JOHNFORD SV-40P 3-AXIS CNC VMC | Used




DESCRIPTION:
40 Taper, 10000 RPM, Fanuc 0i CNC Control

SPECIFICATIONS:

SIZE 41 X 20
X TRAVEL 41"
Y TRAVEL 20"
Z TRAVEL 24"
POWER 15 hp
RPM 10,000 RPM
# ATC 24
TAPER 40
TABLE-W 19.7"
TABLE-L 47.2"
# AXIS 3
CONTROL CNC (Fanuc oiM CNC)
DIMENSIONS 115x126x106
WEIGHT 13000

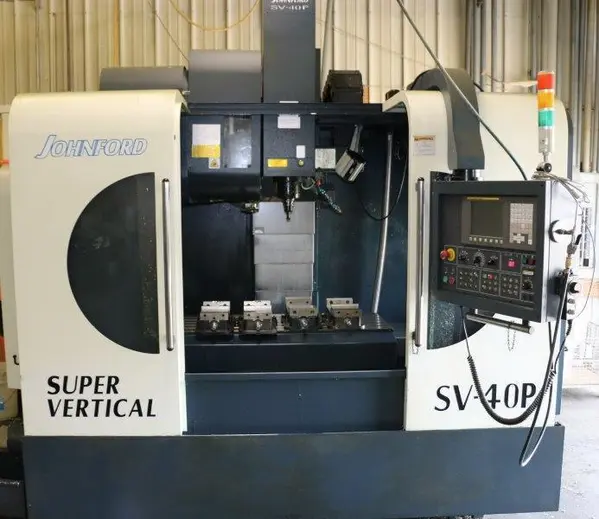

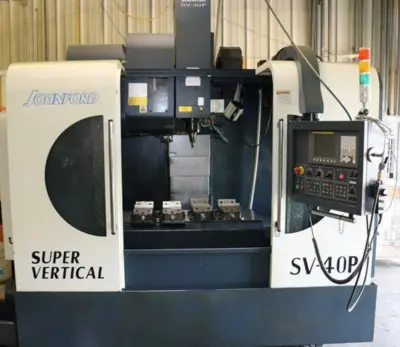

Johnford Model SV-40P 3-Axis CNC Vertical Machining Center

X-Axis Travel: 41"
Y-Axis Travel: 20"
Z-Axis Travel: 24"
Rapid Rate X Axis: 1,181 IPM
Rapid Rate Y Axis: 1,181 IPM
Rapid Rate Z Axis: 787 IPM
Table Size: 19.7" x 47.2"
Max Table Load: 880 LBS
Spindle Motor: 14.75 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40
Tool Changer: 24 Position Side Mount
Dimensions: 115" x 126" x 106.2"
Weight: 13,200 LBS
Equipped with:
Fanuc 0i CNC Control
Side Mount Tool Changer
