Guifil GHE 630

Description

| Year: 2002 | GUIFIL GHE630 1/4 X 10' HYD SHEAR | Used

DESCRIPTION:
Front Operated Power Back Gauge, Front Supports

SPECIFICATIONS:

SIZE 10' x 1/4
MAX THICKNESS 0.25"
LENGTH OF BLADE 10'
HYD/MECH Hyd

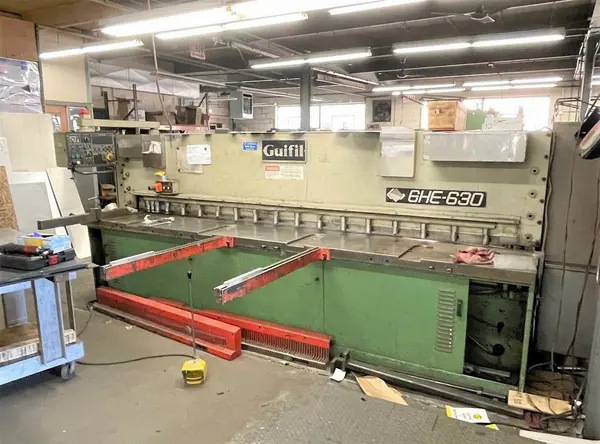

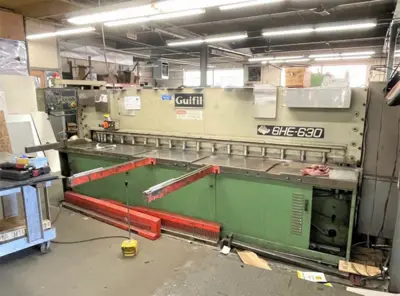

Guifil Model GHE630 1/4 x 10' Hydraulic Power Squaring Shear

Specifications and Equipment
Nominal rated capacity: 10' X 1/4"
Maximum cutting width: 120.00"
Minimum cutting angle: 0.5 deg
Maximum cutting angle: 2.5 deg
Depth of frame gap: TBD
Maximum cutting pressure: 3556 psi
Pre Clamping Pressure: 711 psi
Strokes per minute: 50 SPM, 800 IPM
Back gauge range: 39"
Clamps: (18)
Main Motor drive: 10 HP
¯

EQUIPPED WITH:

39" Front Operated Back Gauge
Front Supports
