2004 Mitsui Seiki HU-40

Description

(3) Machines available
DESCRIPTION:

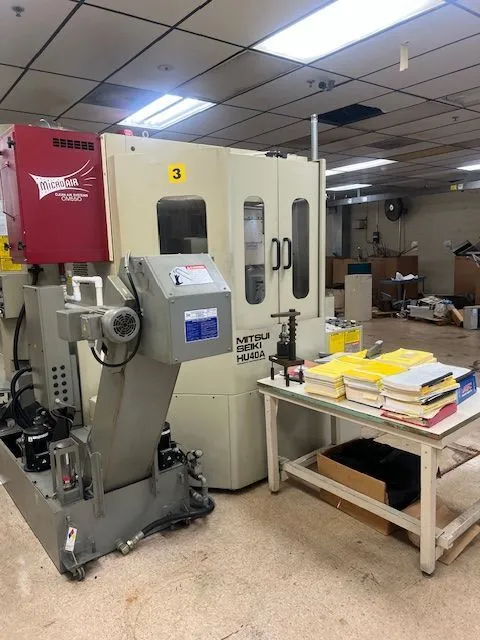

2004 Mitsui Seiki HU40A CNC Horizontal Machining Center. Machine is in very good condition and can be inspected under power as needed.

SPECIFICATIONS:

X 22.047"
Y 22.047"
Z 22.047"
POWER 0 hp
RPM 12,000 RPM
# ATC 120
TAPER CAT40
PALLET-W 0.6201"
PALLET-L 0.6201"
# AXIS 4
CONTROL CNC (FANUC)
DIMENSIONS 160 x 118 x 108
WEIGHT 25,300 lbs
Specification Details
Machine Type Horizontal Machining Center
Model HU40A
Year 2002

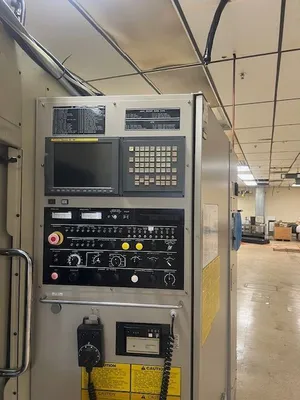

Control Fanuc 15i / 15i-150i
Pallet Size 400 x 400 mm (15.7" x 15.7")
Number of Pallets 2
X-Axis Travel 560 mm (22.0")
Y-Axis Travel 560 mm (22.0")
Z-Axis Travel 560 mm (22.0")
B-Axis 360° indexing
Spindle Taper BT40
Max Spindle Speed 12,000 RPM
Tool Capacity 60–90 tools depending on configuration
Max Workpiece Diameter 600 mm
Max Workpiece Height 800 mm
Max Part Weight 400 kg
Max Tool Diameter 150 mm
Max Tool Length 320 mm
Max Tool Weight 8 kg
Machine Weight Approx. 10,500 kg (23,000 lbs)
Approx. Footprint 4800 × 2500 × 2800 mm
