2016 Iemca Boss 552

Description

Year: 2016 | IEMCA BOSS 552 HD | Used

SPECIFICATIONS:

CAPACITY 2"
BAR LENGTH 12'

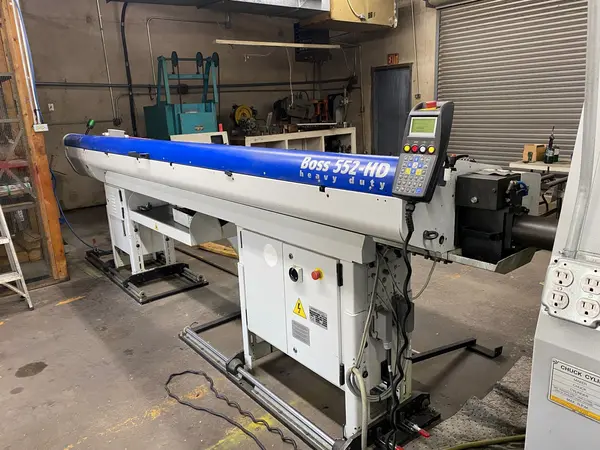

Iemca Boss 552-HD 12' Heavy Duty Barfeed (2016)

Bar Size Capacity: 0.197" - 2.008"
Bar Length Capacity: 12'
Maximum Bar Length: 12' 4"
Minimum Bar Length: 39"
Magazine Capacity: 11 linear inches
Maximum Remnant Length: 15.75"
Guide Channel Oil: ISO 150, quantity 15 gals. (not incl.)
Feeding Speed: 20"/sec Max. (adjustable)
Facing Accuracy: +/- .020"
Bar Change Time: 27 seconds for 12' bar
Bar Straightness Required: .007"/foot
Bar Feeder Shipping Weight: 2090 lbs.
Operating Voltage: 230V AC 3 Phase (400V available)
Control Voltage: 24 Volts DC
Total Power Required: 2.5 kVA/2kW
Compressed Air Required: 90 psi, 10 cfm
