Droop & Rein FOGS 3068C 5-Axis Gantry Mill

Description

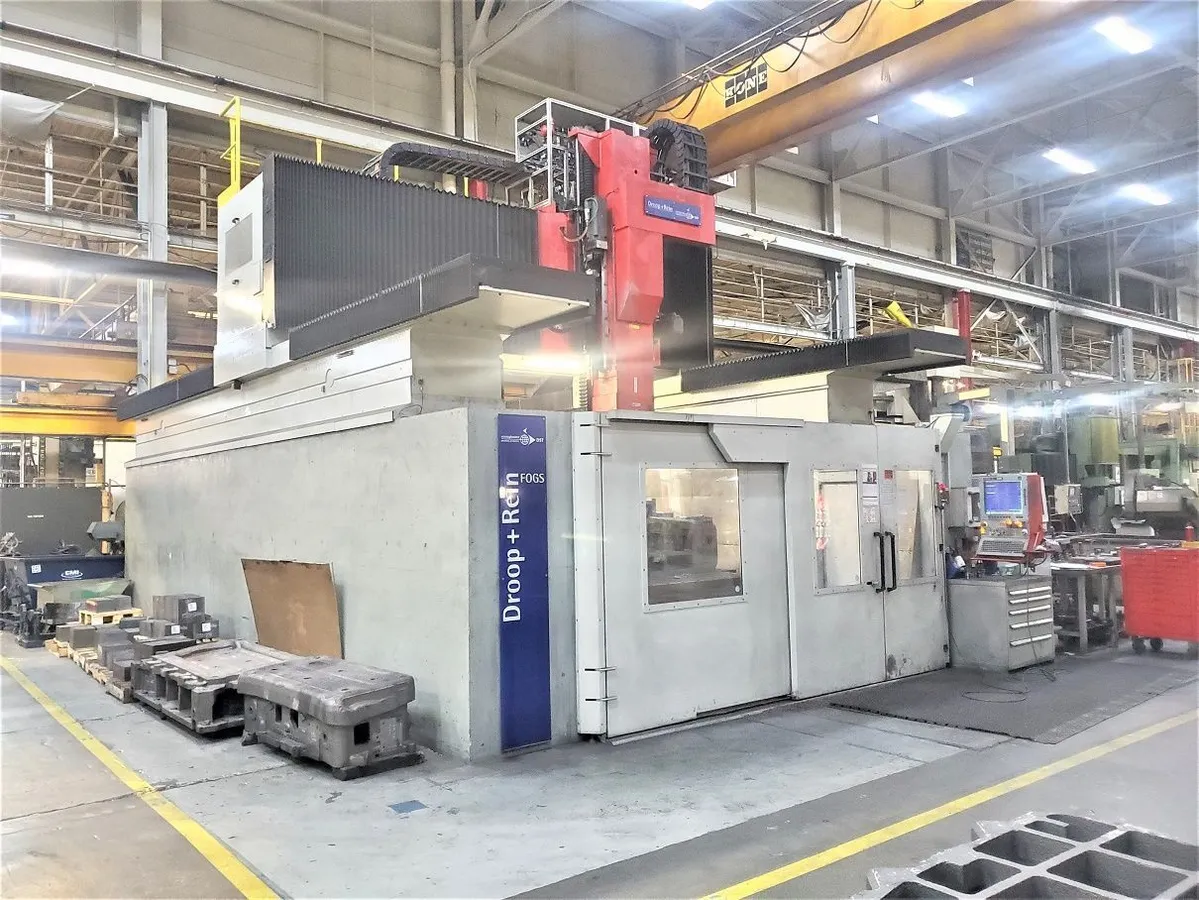

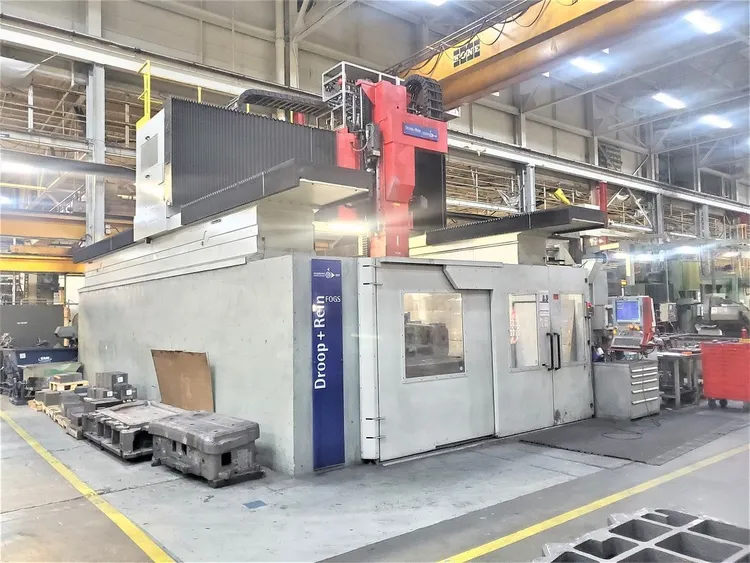

Droop & Rein FOGS 3068C 5 Axis Gantry Style Machining Center (2013)

Specifications (Preliminary)

X Axis Travel: 267"
Y-Axis Travel: 118"
Z-Axis Travel: 59"
C-Axis: n x 360 Degree
B-Axis +/- 115 Degree
Clamping Plate: 118" x 236"
Ram Section: 23.6" x 24."
Horiz. Clearance: 4.090 mm Between Columns
Vert. Clearance: 94" Clamping plate, Cross Rail
Dist, Clamping Plate: Min. 27.5" spindle centre line, horiz. spdl
Max. 86.6"
DIst. Clamping Plate Min. 10.6" By Vert. Motor Spindle
Max. 69.6"
Dist. Clamping Plate Min. 7.8" spindle center by vert. motor spdl
Max. 66.9"
Feed Rates: X-Axis Up to 30 m/min
Y-Axis Up to 30 m/min
Z-Axis Up to 30 m/min
C-Axis 4.320 degree/min
B-Axis 4.320 gefree/min
Rapid Feed Rates: X-Axis Up to 40 m/min
Y-Axis Up to 40 m/min
Z-Axis Up to 40 m/min
C-Axis 4.320 degree/min
B-Axis 4.320 degree/min
Machine weight, Approx. 209,000 Lbs.
Milling Spindle Motor: 26 Hp
Electrics: 600/3/60/115 Amps



Equipped With:


Fidia C20 Cnc Control
30 tool Automatic Tool Changer
Fork-type head for adaptation of different motor milling spindles
Fixation of the spindles in the fork-type head by hydraulic clamping
Temperature sensor for length compensation
B-axis (swivel motor milling spindle, continuous)
