2006 Mazak Integrex IVS

Description

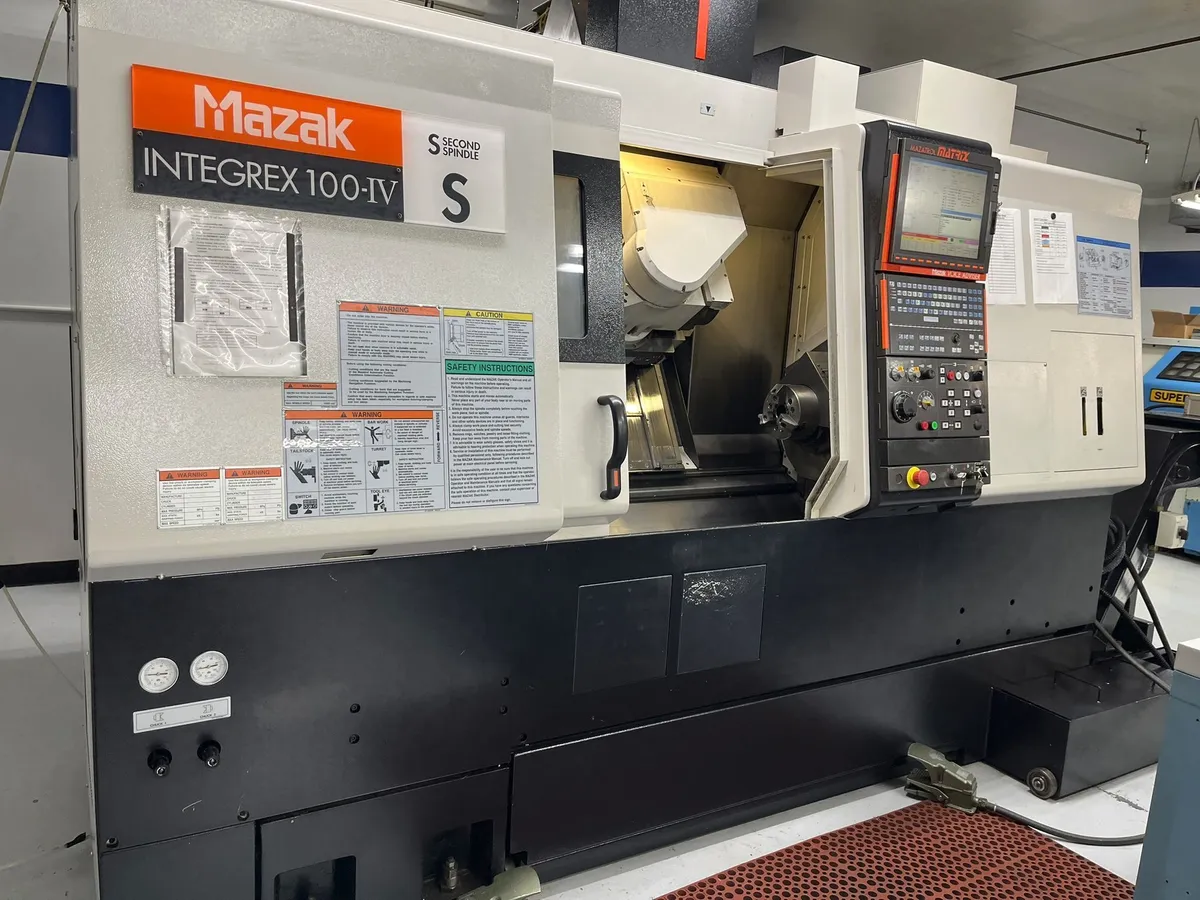

MAZAK INTEGREX 100-IVS
Year: 2006

Description:
In great operating condition. Includes chip conveyor, coolant chiller, all manuals. Tooling is available at an extra cost. This machine requires special KM63 - XMZ tool holders. Used for manufacturing aluminum pistons.
Specifications: 12,000 RPM, 7.5 hp, 36.2 ft-lbs Milling Spinle
40 Tool Magazine
Y Axis +/- 2.75"
X Axis 16.14
Z Axis 31.69
W Axis 31.3
B Axis 225°
Machine Size 119" long x 85" wide x 96" tall
Machine Weight 16,300 lbs
Power Required is 32.9 KVA (Machine is wired for 240v 3 phase)
Machine has 400v transformer installed
Air Required is 72 psi / 25 CFM

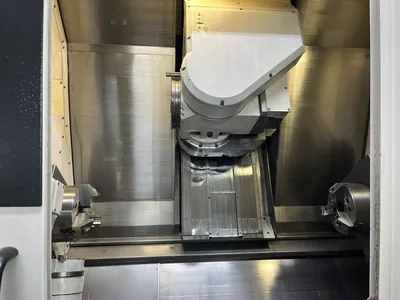

Primary & Secondary Spindles both have Kitigawa B206 chucks
Distance between chuck faces is 31.18"
Primary & Secondary Spindles both have C Axis capability
The control resolution is .00001" for linear axis and .0001° for angular axis
