2007 Hwacheon Mega T-130

Description

HWACHEON MEGA T130 | Used

DESCRIPTION:
50" Chuck, Fanuc 21TB CNC Control

SPECIFICATIONS:

SIZE 50" chuck
SWING 50"
MACHINING LENGTH 35"
# AXIS 2
CHUCK SIZE 50"
POWER 30 hp
TAILSTOCK No
LIVE TOOLING No
SUB SPINDLE No

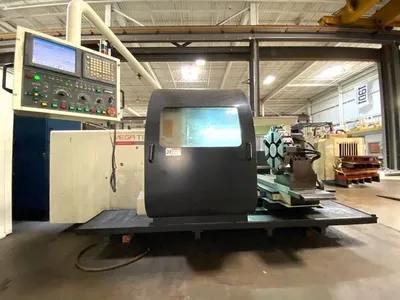

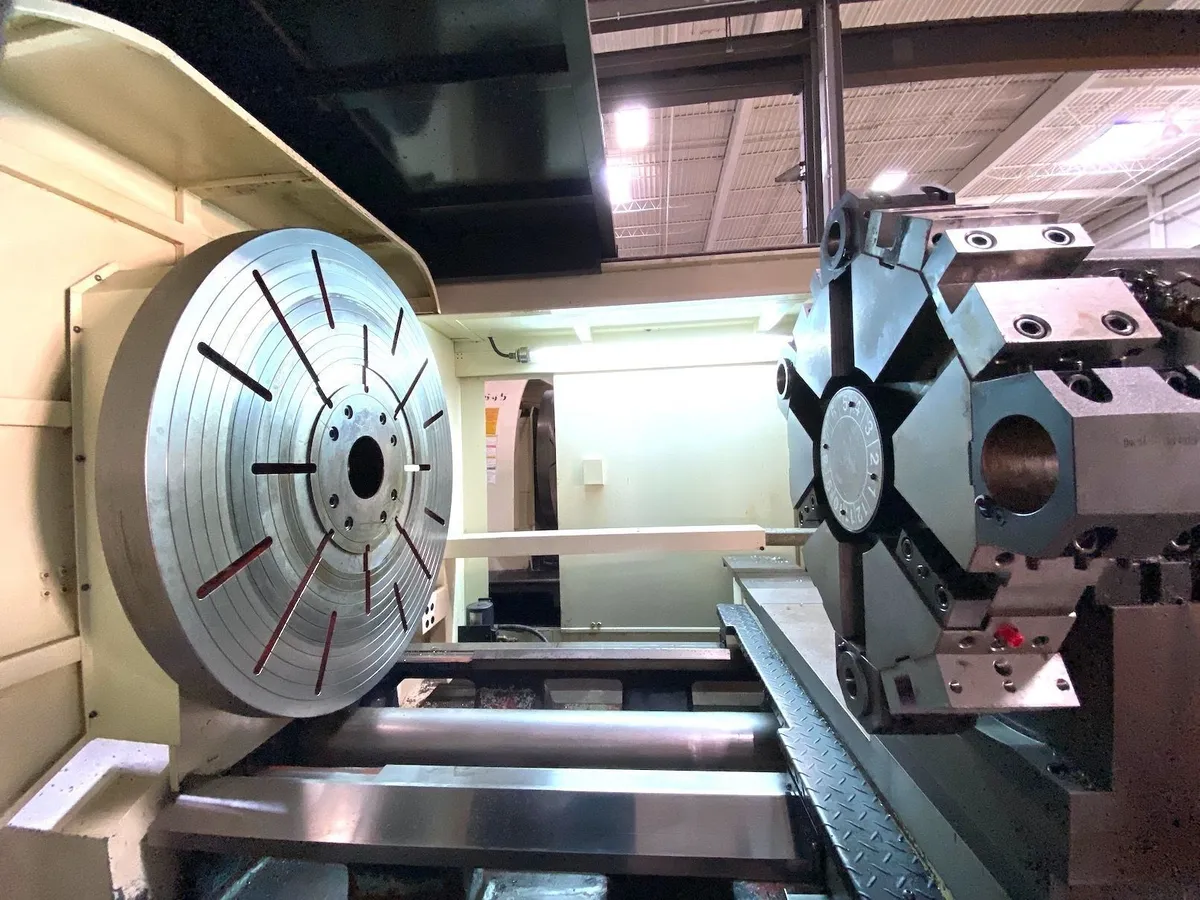

50" chuck Hwacheon Mega T130 Heavy Duty CNC Lathe (2007)

50" Chuck, Fanuc 21TB CNC Control

Specifications (Preliminary)
Swing Over Bed: 50"
Swing over Cross Slide: 35.83"
Max Cutting Diameter Over Cross Slide: 35.4"
Max Cutting Diameter Over Bed: 51"
Spindle Nose: A2-15
Spindle Speeds: 4-400 RPM
Max Stroke X / Z: 26.3" / 43.31"
Rapid Feeds: 157 / 157 IPM
Spindle Motor: 30 HP
Power Capacity: 45 Kva, 108 Amps
