1990 Guifil PE30

Description

GUIFIL PE30/100 | Used

DESCRIPTION:
100 Ton, 100" Between housings, Hydraulic operation, Up-acting

SPECIFICATIONS:

SIZE 110 ton
TONNAGE 110 T
TYPE HYD
OVERALL LENGTH 10'
BETWEEN HOUSINGS 8.5'
STROKE 7"
# AXIS 2

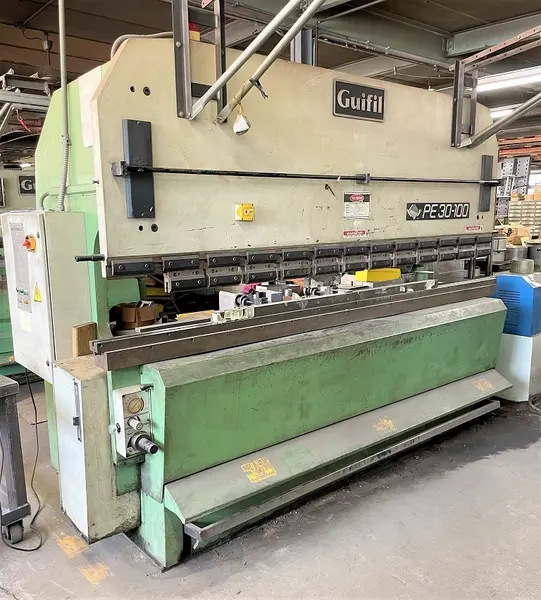

Guifil PE30-110 Ton Hydraulic Press Brake

Specifications:
Total Rated Tonnage Capacity 110 Tons
Overall Bending Length 10' 11"
Dist Between Housing 8'4"
Stroke Length (Adj) 4"
Throat Depth 18"
Approach Speed 1.58"/Sec.
Return Speed 2.17"/Sec.
Bending Speed .28"/Sec.
Main Motor Drive 10 HP
Weight............ 14,000 Lbs

EQUIPPED WITH:

Upacting Ram
Full Length Foot Operated Tredal
(12) Upper Die Hold Downs
Lower Die Rain
Manual Back Gauge
