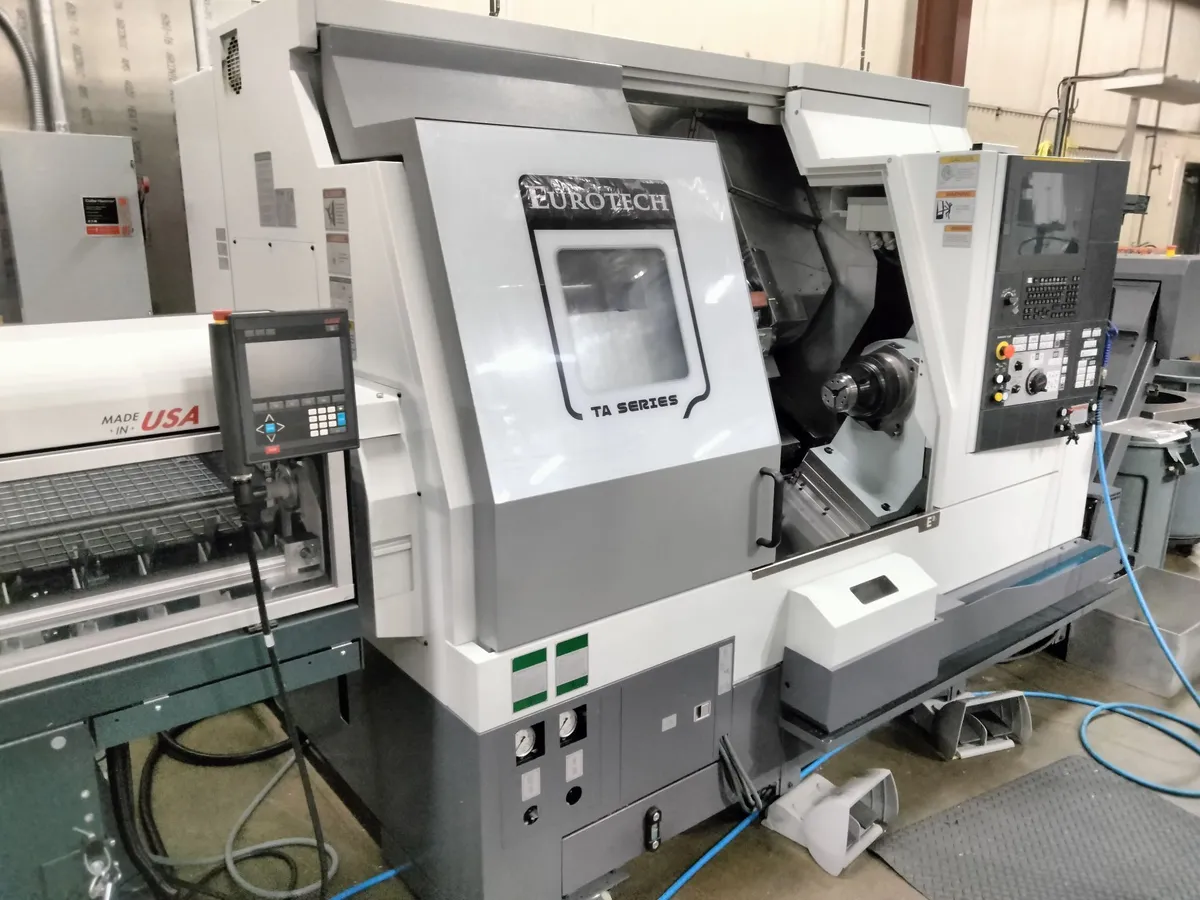

2022 Euro Tech CMZ TA-20-YS-640

Description

Eurotech CNC lathe model:
TA-20-YS-640/Fanuc 32iTB with 15 " touch screen and new iHMI
Optional accessories for TA series
Machine language: English
G codes type A in Fanuc control
Machine Manuals in pdf format available for download in
N-55 15 position turret
Standard hydraulic cylinder in main spindle (TA20 Autoblok VNK 150-67)
Air blow over main spindle
Removable tool presetter
Side exit chip conveyor for Z=640 bed (standard type)
Machine status indicator light
Tool life management function
Tool load monitoring function
High pressure coolant pump (6 bar)
High pressure coolant pumps (6 bar + 15 bar)
Coolant filter 250μm with scraper type cleaning system
Pneumatic, automatic, programmable parts catcher with conveyor
Barfeed interface - Unimag
Parts ejector for subspindle (Pneumatic type) with adjustable stroke of 100mm
Coolant through subspindle
Optional tool holders
TTL/10400/02 Axial driven toolholder ER32 with internal coolant 70bar (12000rpm)
TTL/10400/05 Radial driven toolholder ER32 (12000rpm)
Wrench for ER16 ring nut (330.12.0634)
Wrench for ER32 ring nut (330.12.0637)
Max diameter of swinging over bed: 760 mm
Max diameter of swinging over slides: 600 mm
Max turning diameter: 460 mm
Distance between center of spindles: 625 mm
X- axis travel: 310 mm
Z-axis travel: 640 mm
Y-axis travel: +70 -50
B-axis travel: 640 mm
Max speed: 3500 rpm
Bearing outside diameter: 200 mm
Bearing inside diameter: 130 mm
Spindle nose inside diameter: 91 mm
Draw tube bore: 82 mm
Chuck diameter: 255 / 315 mm
Chuck bore: 82 mm
Turning torque: 1020 Nm max
Number of positions on turret: 14 Section on tools: 25x25 mm
Max speed subspindle: 4500 rpm
Machine dimensions: 2542x1760x2120 mm


LNS QUICKLOAD SERVO 3+ BARFEEDER – 4FT
TRANSFORMER 51KVA
