2007 Vanguard CAK80485D for sale
Have one to sell?
ConditionUsed
1 available
VANGUARD
Model:
CAK80485D
size 28" chuck
Swing 32"
Machining Length 191"
# Axis 2
Chuck Size 28"
Bar Capacity 4.13"
Power 20 hp
Max RPM 1,000 RPM
Turning Dia 18.9"
Tailstock Yes
Live Tooling No
Sub Spindle No

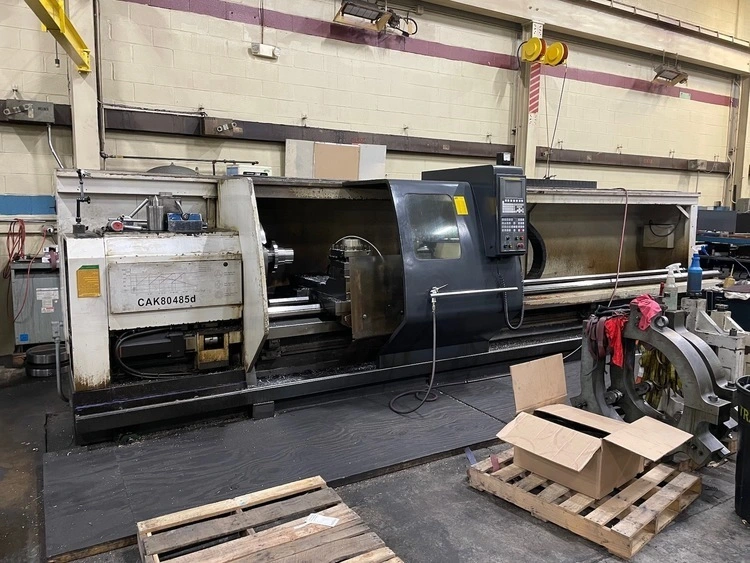

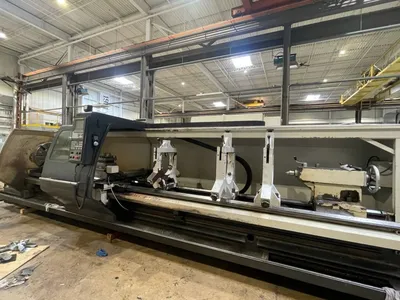

Vanguard CAK80485D 32" x 191" 2 Axis Flat bed CNC Lathe (2007)
Swing over bed 32" (800mm)
Swing over carriage 18.9" (480mm)
Maximum cutting length 190.94" (4850mm)
Spindle bore 4.13" (104mm)
Spindle speed 17-1000 rpm (auto 4 gear range)
Main motor : 20HP (15 kw)
