Finn-Power 200-4100 Cnc Electric Press Brake

Description

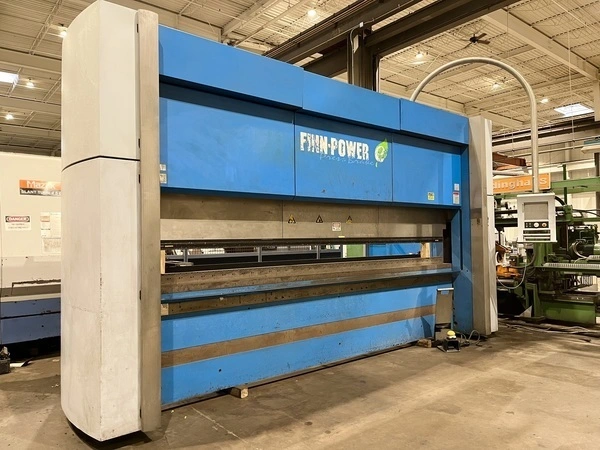

FINN-POWER 200-4100 TS 3 F CNC ELECTRIC PRESS BRAKE (2007)

DESCRIPTION:
200 Ton, 4 axis, TS3 7-axis cnc control, (5) axis back gauge (X,R,Z1,Z2,X1), Windows Based Controls

SPECIFICATIONS:

SIZE 200 Ton x 161
TONNAGE 200 T
TYPE ELE
OVERALL LENGTH 161"
BETWEEN HOUSINGS 144"
STROKE 11.81"
# AXIS 4
CONTROL CNC (Finn Power)
DIMENSIONS 81” x 210” x 115”
WEIGHT 37000
FINN-POWER 200-4100 TS 3 F CNC ELECTRIC PRESS BRAKE (2007)

Tonnage 200 T
Type ELE
Overall Length 161"
Between Housings 144"
Stroke 11.81"
Approach Speed 77MM/SEC
Bending Speed 10MM/SEC

# Axis 4

EQUIPPED WITH:

Windows Based Controls, TS3 7-axis cnc control, (5) axis back gauge (X,R,Z1,Z2,X1),
The TS3 control has 2D and 3D programming capability. The bending order can be graphically programmed at the press brake along with all program preparation. A keyboard is included in the optional TS3 control for easy alpha-numeric input. This is a good combination with DELEM Vbend offline programming software.
Upper ram is set up for American style WILA dies.
