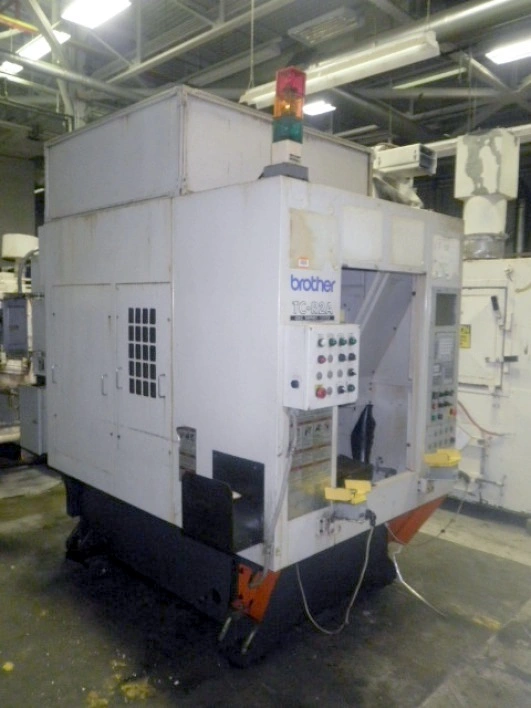

Brother Tc-R2A drilling & tapping center

Description

BROTHERMODEL:TC-R2A CNC TAPPING CENTER
SERIAL NUMBER:111355
YEAR:2003
X -TRAVEL:16.54", Y -TRAVEL:12.60", Z-TRAVEL:10.63"
RAPID FEED RATE (X & Y AXES):30M/MINRAPID
FEED RATE (Z-AXIS):50M/MIN.
SPINDLE TAPER:BT30
SPINDLE SPEED:10-10000RPM
TABLE WIDTH:11.81in.300.00mm.TABLE LENGTH19.69in.500.00mm.
TOOL CHANGER / NUMBER OF TOOLS:14-TOOL MAGAZINE
POWER 3PHASE / 50-60 Hz / POWER 200 -600 Volts:3 PH / 50-60Hz / 380 / 480 V
EXISTINGSPECIAL FEATURES OR ADDITIONAL ITEMS:SIMULTANEOUS 5-AXES POSITIONING,
2-FACE QUICK TABLEMACHINE DIMENSIONS -Length:67.00in.1701.80mm.Width:110.00in.2794.00mm.Height:101.00in.2565.40mm.WE IGH T:6500lbs.2955Kg.
CONDITION:EXCELLENT
