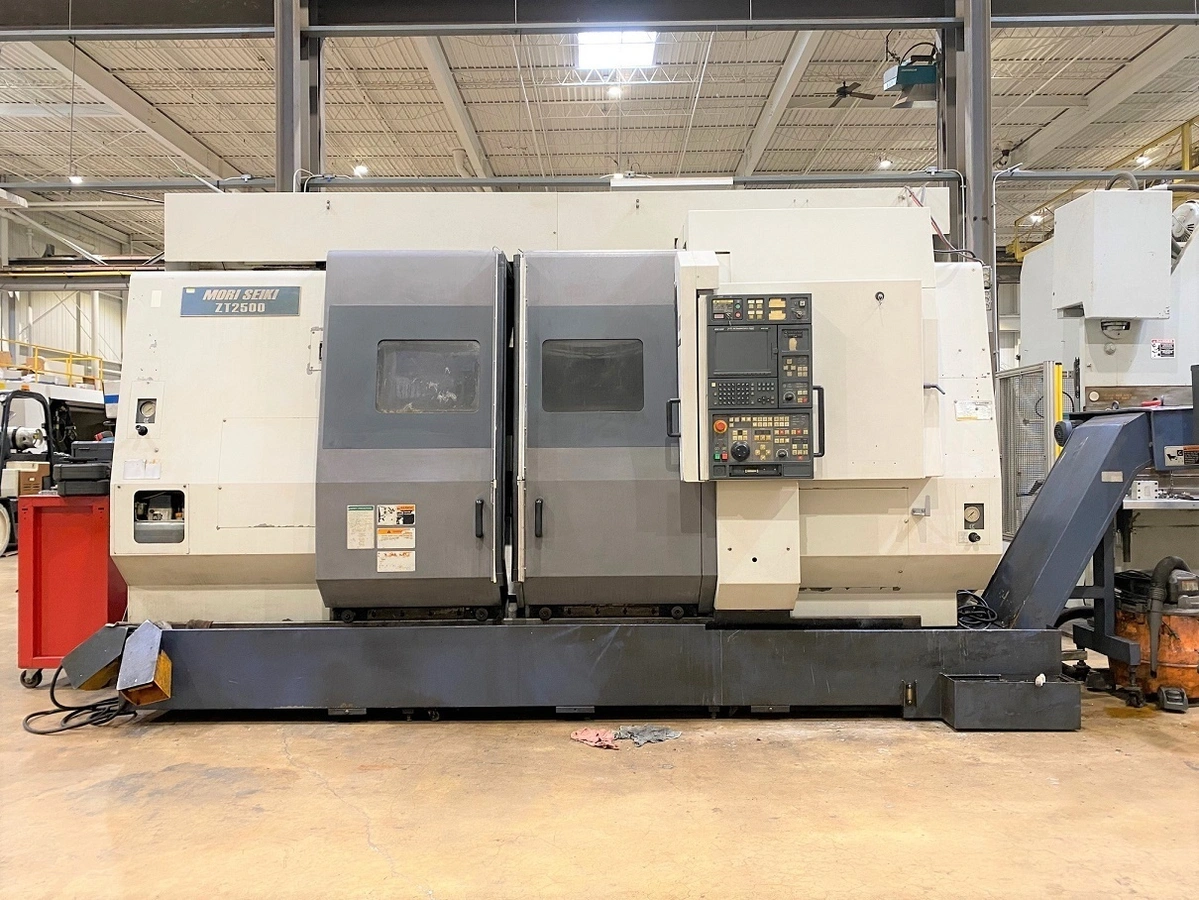

Mori Seiki Model ZT-2500Y 8-Axis CNC Lathe with Live Tool, Sub Spindle Twin Turret

 Maximum Turning Diameter:             14.9"
  Maximum Distance Between Spindles:   51.2"
  Maximum Turning Length:              14"
  Maximum Bar Capacity:                2.8"
  X1-Axis Travel:                      11"
  X2-Axis Travel:                      Lower Turret           7.9"
  Z1-AXIS Travel:                      37.8"
  Z2-Axis Travel:                      Lower Turret           38.8"
  Y-Axis Travel:                       +/- 2.9"
  C-Axis Indexing:                     0.001 Degree
  Spindle Speeds:                      4,000 Rpm
  Spindle Nose (Both):                 A2-8
  Hole Through Spindle:                3.5"
  Number of Tool Positions:            12 Each Turret
  Rotary Tool Speed Range:             Up to 4,000 Rpm
  X, Z, & B-Axes Rapid Traverse Rate:  945 Ipm
  Y-Axis Rapid Traverse Rate:          472 Ipm
  Approximate Machine Weight:          29,000 Lbs.
