2013 Droop & Rein FOGS 3068C 5 Axis Gantry Style Machining Center (2013) FOGS 3068C

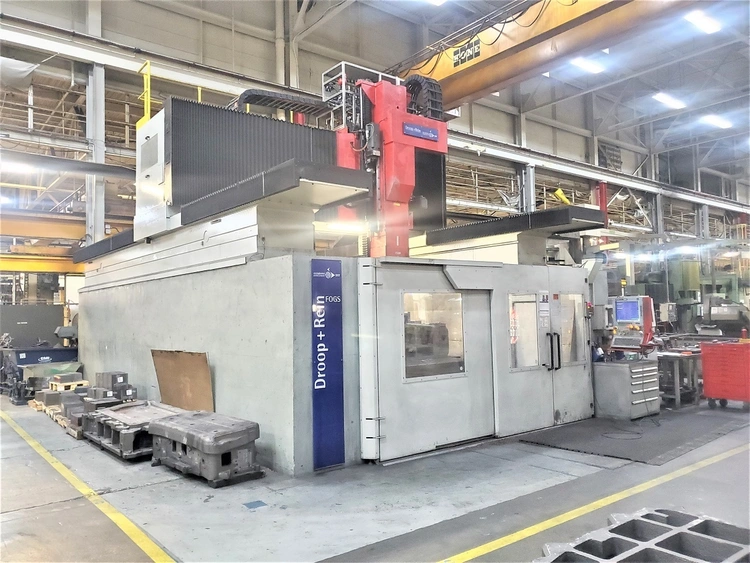

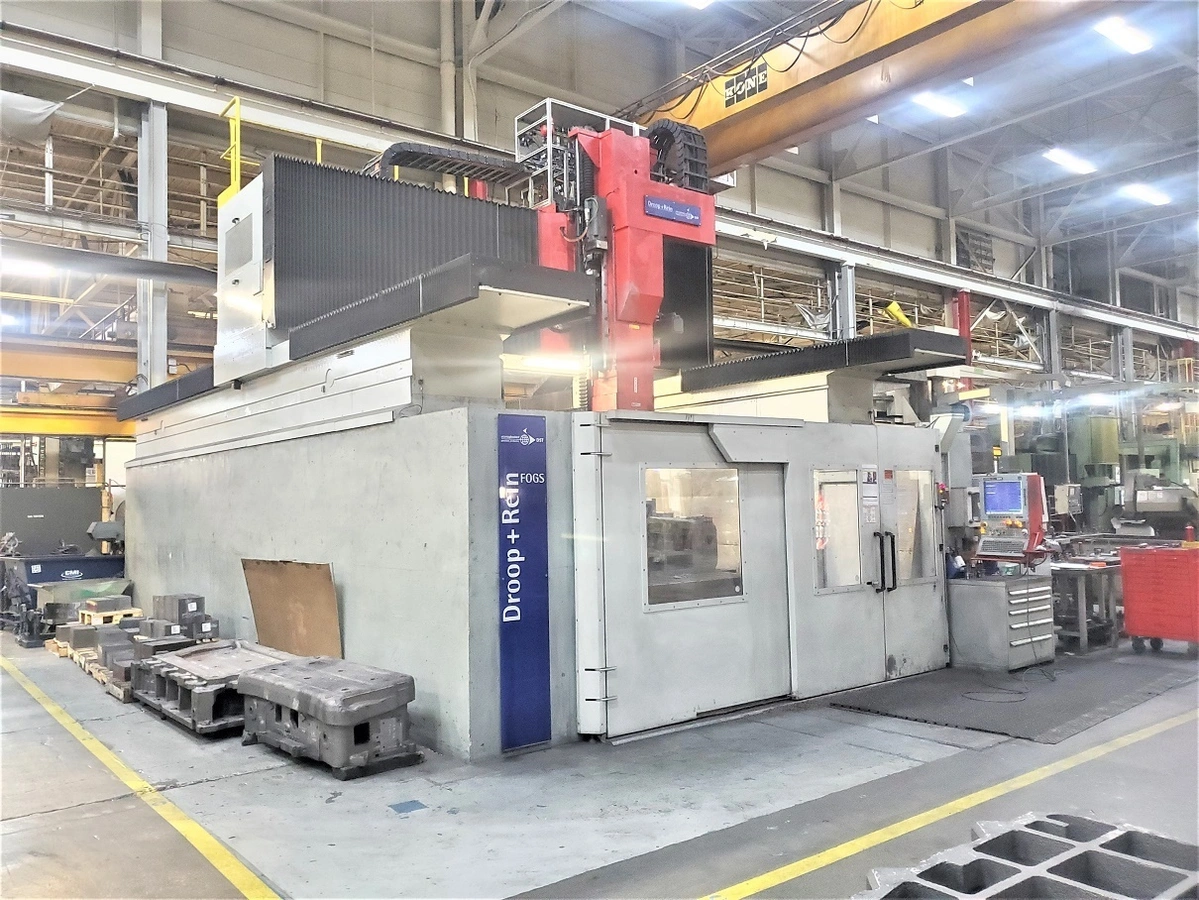

Droop & Rein FOGS 3068C 5 Axis Gantry Style Machining Center (2013)

Specifications (Preliminary) X Axis Travel: 267" Y-Axis Travel: 118" Z-Axis Travel: 59" C-Axis: n x 360 Degree B-Axis +/- 115 Degree Clamping Plate: 118" x 236" Ram Section: 23.6" x 24." Horiz. Clearance: 4.090 mm Between Columns Vert. Clearance: 94" Clamping plate, Cross Rail Dist, Clamping Plate: Min. 27.5" spindle centre line, horiz. spdl Max. 86.6" DIst. Clamping Plate Min. 10.6" By Vert. Motor Spindle Max. 69.6" Dist. Clamping Plate Min. 7.8" spindle center by vert. motor spdl Max. 66.9" Feed Rates: X-Axis Up to 30 m/min Y-Axis Up to 30 m/min Z-Axis Up to 30 m/min C-Axis 4.320 degree/min B-Axis 4.320 gefree/min Rapid Feed Rates: X-Axis Up to 40 m/min Y-Axis Up to 40 m/min Z-Axis Up to 40 m/min C-Axis 4.320 degree/min B-Axis 4.320 degree/min Machine weight, Approx. 209,000 Lbs. Milling Spindle Motor: 26 Hp Electrics: 600/3/60/115 Amps Equipped With: Fidia C20 Cnc Control 30 tool Automatic Tool Changer Fork-type head for adaptation of different motor milling spindles Fixation of the spindles in the fork-type head by hydraulic clamping Temperature sensor for length compensation B-axis (swivel motor milling spindle, continuous)
